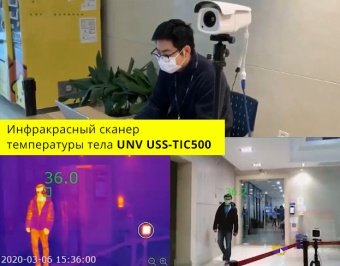

Инфракрасный сканер температуры тела UNV USS-TIC500
- Описание
- Характеристики
- Отзывы
- Задать вопрос
- Наличие
-
ОписаниеМодель сканера USS-TIC-500 помогает оперативно измерить температуры тела человека в инфракрасном диапазоне.
По сути, устройство – тепловизор, использующий для работы инфракрасное тепловое излучение. Сканер USS-TIC-500 работает бесконтактно, придерживаясь норм безопасности во время вирусных эпидемий.
Устройство предназначено для использования в местах с повышенным скоплением людей: офисные центры, метро, ЖД и аэропорты, медицинские и учебные заведения, ТРЦ и супермаркеты, почтовые и банковские отделения.
Key Features
Thermal imaging function:
- Resolution 384 × 288, high sensitivity detector
- Highest temperature cross cursor positioning
- Supports point, line, rectangle, and irregular area temperature measurement modes
- Support human body temperature abnormal alarm function
- Support automatic capture of moving face targets
- Support wearing a mask to identify the face area to avoid false alarms from non-face high temperature objectsVisible light phase function:
- 500W high-definition visible light detector
- Supports automatic exposure control and automatic white balance
- Supports face temperature measurement mode, intelligently analyzes face targets and measures body temperature, supports multiple alarm linkages
- Dual light temperature measurement linkage, can draw regular and superimposed temperature measurement information on visible light image
-
Характеристики
ХарактеристикиHTML Model
USS-TIC500
Thermal Camera
Sensor type
Uncooled detector
Sensor pixels
384 × 288
Response band
7.5 ~ 14μm
Pixel pitch
17μm
Optical Transmission Calibration
Manual / Automatic
NETD (Noise Equivalent Temperature Difference)
<50mk (@ 25 ° C, F # = 1.0)
Lens focal length
6.5mm
Field of View
50.8 ° × 37.1 °
Image frame rate
30Hz
Palette
Hot white, black hot, iron red, etc.
Image and Video
Thermal Image / Video / Visible Light Picture
.jpg (including full temperature data) / Full Temperature Infrared Video / .jpg Visible Light Picture
Visible light camera parameters
Focal length
2.7mm
Sensor pixels
5 million pixels
Temperature measurement function
Temperature measurement range
0 ° C-70 ° C
Temperature measurement accuracy
Under the rated working environment conditions, ± 0.4 ° C (without black body) ± 0.3 ° C (with black body)
Temperature measurement area setting
Support global highest temperature, lowest temperature, average temperature tracking, point, line, rectangle, irregular area temperature measurement mode
Over temperature alarm function
Support human body temperature abnormal alarm function, area alarm text, temperature measurement box color can be set, alarm voice prompt
Intelligent features
Support automatic capture of moving face targets
Face area recognition
Support wearing a mask to identify the face area to avoid false alarms from non-face high temperature objects
General specifications
Power input
DC12V
Power
20W (MAX)
Size (mm)
232mmx112mm × 95mm
Weight
≤2.5Kg
Protection class
IP66
Working temperature and humidity
-20 ° C ~ + 55 ° C, <90% RH
